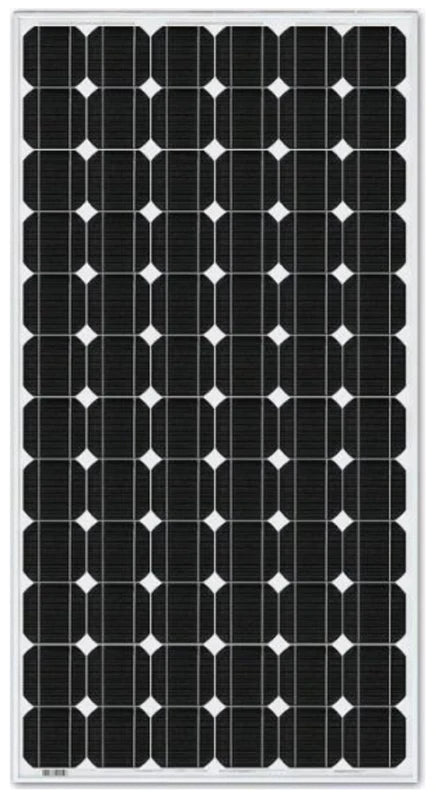

Victron 305W Fixed Solar Panel

Victron 305W Fixed Solar Panel

Regular price $330.00
Regular price $399.00 Sale price $330.00
Sale Sold out
Tax included.
  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multifunctional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminum frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • Pre wired quick-connect system with PV-ST01 connectors.

Panel Specifications

  • Height: 1690mm
  • Length: 1040mm
  • Width: 50mm
  • Weight: 19
  • Nominal Power (Pmpp): 305W
  • Max Power Voltage (Vmpp): 32.5V
  • Max Power Current (Impp): 9.38A
  • Open Circuit Voltage (Voc): 39.7V
  • Short Circuit Current (lsc): 10.27A
  • Cell Type: Monocrystalline
  • Number of cells in series: 60
  • Max. system voltage: 1000V
  • Temperature Range: -40°C to +85°C
  • Surface Maximum Load Capacity: 200 kg/m²
  • Allowable Hail Load: 23 m/s, 7.53 g
  • Frame: Aluminium
