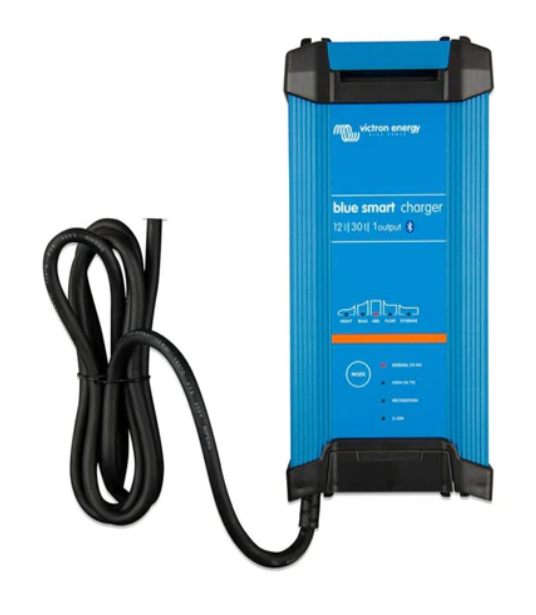

Victron 240V 30A Blue Smart Single (1) Output Charger

Victron 240V 30A Blue Smart Single (1) Output Charger

Regular price $259.99
Regular price $360.00 Sale price $259.99
Sale Sold out
Tax included.

The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard.

And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the
industry standard.

The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storagemode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.


LiFePO₄ batteries are charged with a simple bulk – absorption – float algorithm.

When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be
totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.

Eleven LEDs for status indication: Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE

Datasheet.
