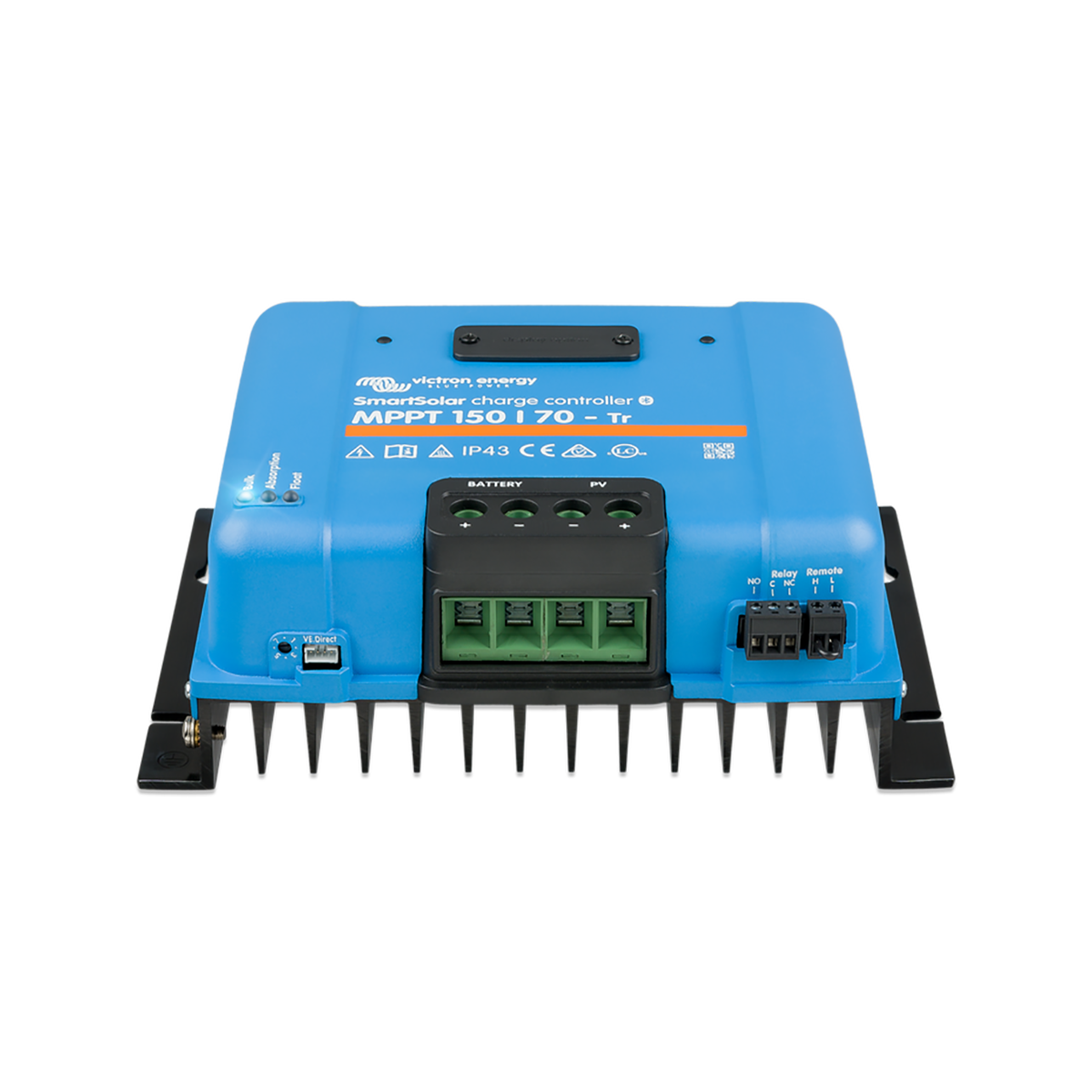

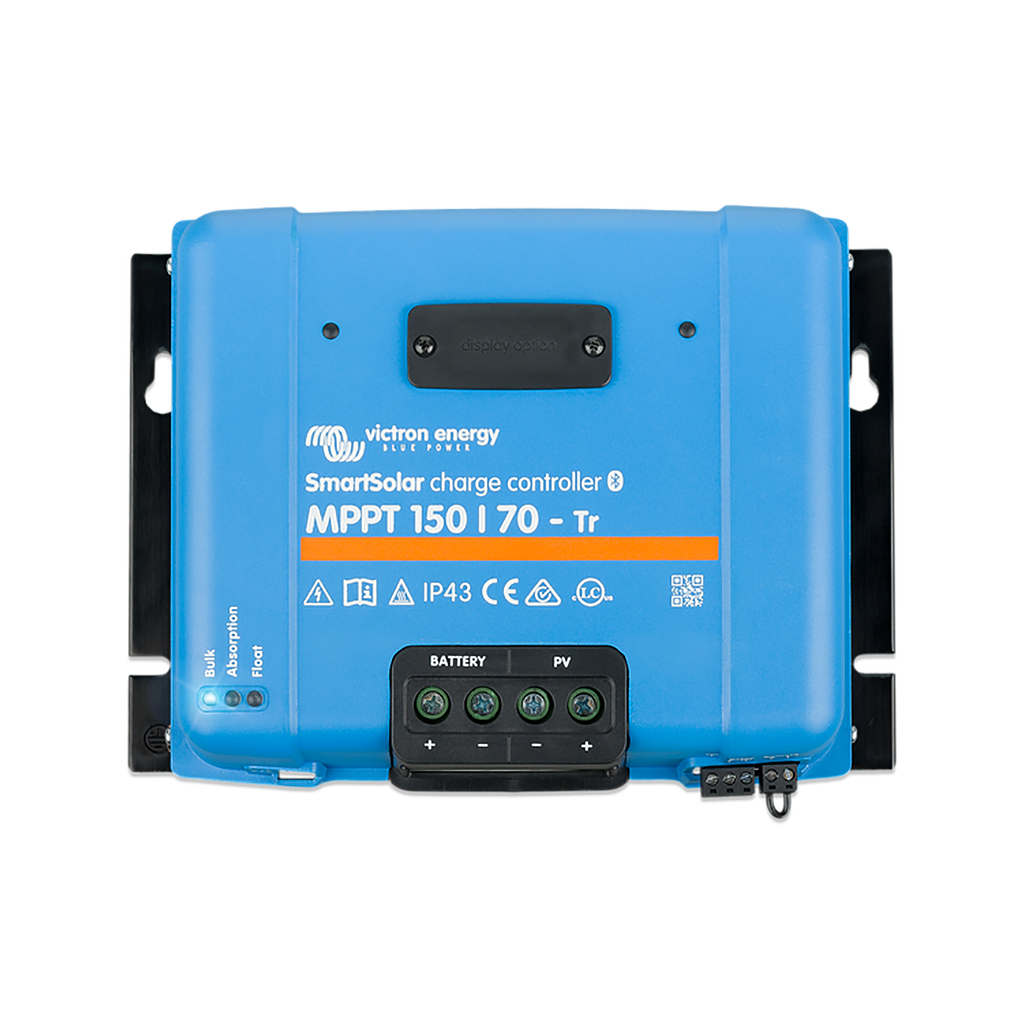

Victron Smartsolar Mppt 150/70 Tr.

Bluetooth Smart built-in: dongle not needed- The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct- For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultra-fast maximum power point tracking (MPPT)- Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced maximum power point detection in case of partial shading conditions- If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency- No cooling fan. Maximum efficiency exceeds 98%.

Flexible charge algorithm- Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Programming, real-time data and history display options- Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.

Programmable relay- Can be programmed (a.o. with a smartphone) to trip on an alarm, or other events.

Optional: pluggable LCD display- Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.

Remote on-off- To connect for example to a VE.BUS BMS.

Extensive electronic protection- Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor- Compensates absorption and float charge voltage for temperature.
