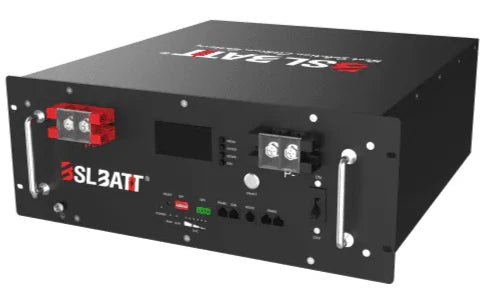

BSL 48V 100AH Rack Mount 5kWh Lithium LiFePO4 Battery

BSL Batteries 48V 100Ah Rack Mount LiFePO4 – Model B-LFP48-100E 3U
Approved on the Victron preferred battery supplier

When it comes to reliable, long-lasting energy storage, the BSL Batteries 48V 100Ah Rack Mount LiFePO4 Battery (Model B-LFP48-100E 3U) is engineered to deliver exceptional performance. Designed for high-demand environments, this battery combines cutting-edge lithium iron phosphate (LiFePO4) technology with a rugged, space-efficient 3U rack-mountable form factor.

Key Features:

• Nominal Voltage: 51.2V
• Nominal Capacity: 5120Wh
• Usable Capacity: 4608Wh
• Cell Configuration: 16S1P (16 series, 1 parallel)
• Dimensions: 538 x 483 x 136 mm (W x H x D)
• Weight: 46kg

Powerful and Efficient Performance:

• Discharge Voltage: 46V to 55V
• Charge Voltage: 54V to 58V
• Depth of Discharge: 90%
• Rated Discharge Current: 80A (4.096kW)
• Rated Charge Current: 50A (2.56kW)
• Max Discharge Current: 110A (5.632kW)
• Max Charge Current: 120A (6.144kW for 1 second)
• Peak Current (Discharge): 150A (7.68kW for 1 second)

Robust and Reliable:

• Temperature Range: Operating temperature between 0~35°C for safe and efficient use
• Storage Temperature: -20~45°C
• Protection: Short-circuit protection with a 500μs delay time and advanced Battery Management System (BMS) for overcharge, over-discharge, and overcurrent protection
• Cooling: Passive cooling with built-in thermal management
• IP20 Protection Level: Ensures reliable protection against solid objects larger than 12mm in diameter.

Outstanding Lifespan and Safety:

• Cycle Life: >6000 cycles at 25°C
• Warranty: 10 years, with a design life exceeding 15 years under normal conditions
• Monthly Self-Discharge: ≤3%, ensuring minimal energy loss during storage
• Humidity Range: Operating humidity ≤60% RH
• Altitude: Suitable for altitudes up to 4000m
• Certified Safety: UN38.3 certified for global safety compliance

Sustainable and Eco-Friendly:

• Low Environmental Impact: LiFePO4 is non-toxic and highly recyclable, offering an eco-friendly alternative to traditional lead-acid batteries.

Whether you're powering a large-scale renewable energy system, backup power solutions, or industrial applications, the BSL Batteries 48V 100Ah Rack Mount LiFePO4 provides the robust, long-lasting power you need for uninterrupted operations.
