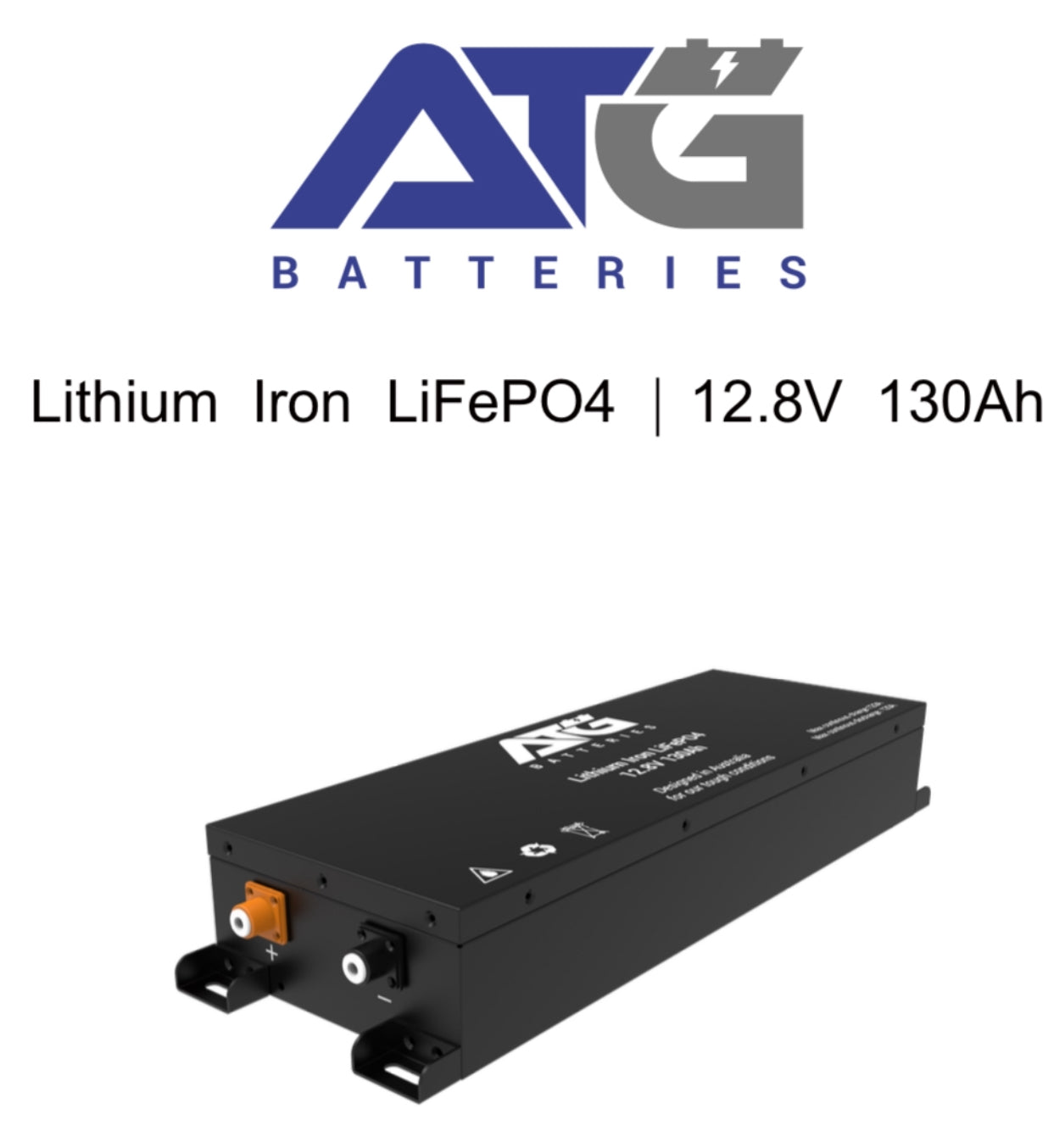

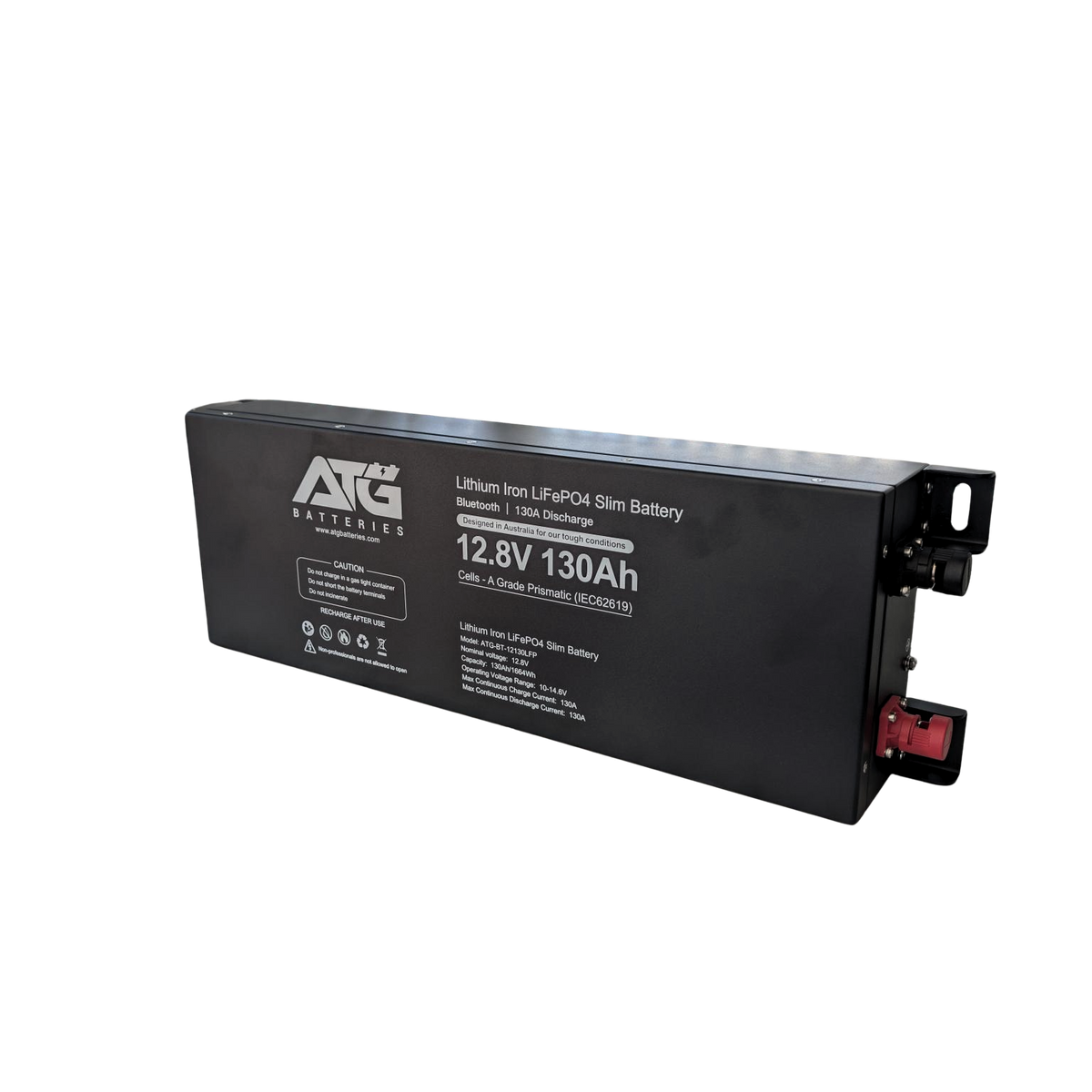

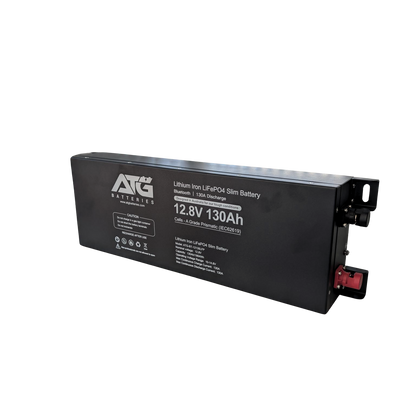

ATG 130AH Slim Lithium Battery (bluetooth)

ATG 130AH Slim Lithium Battery (bluetooth)

$599.00
$899.00 $599.00
Sale Sold out
Taxes included.

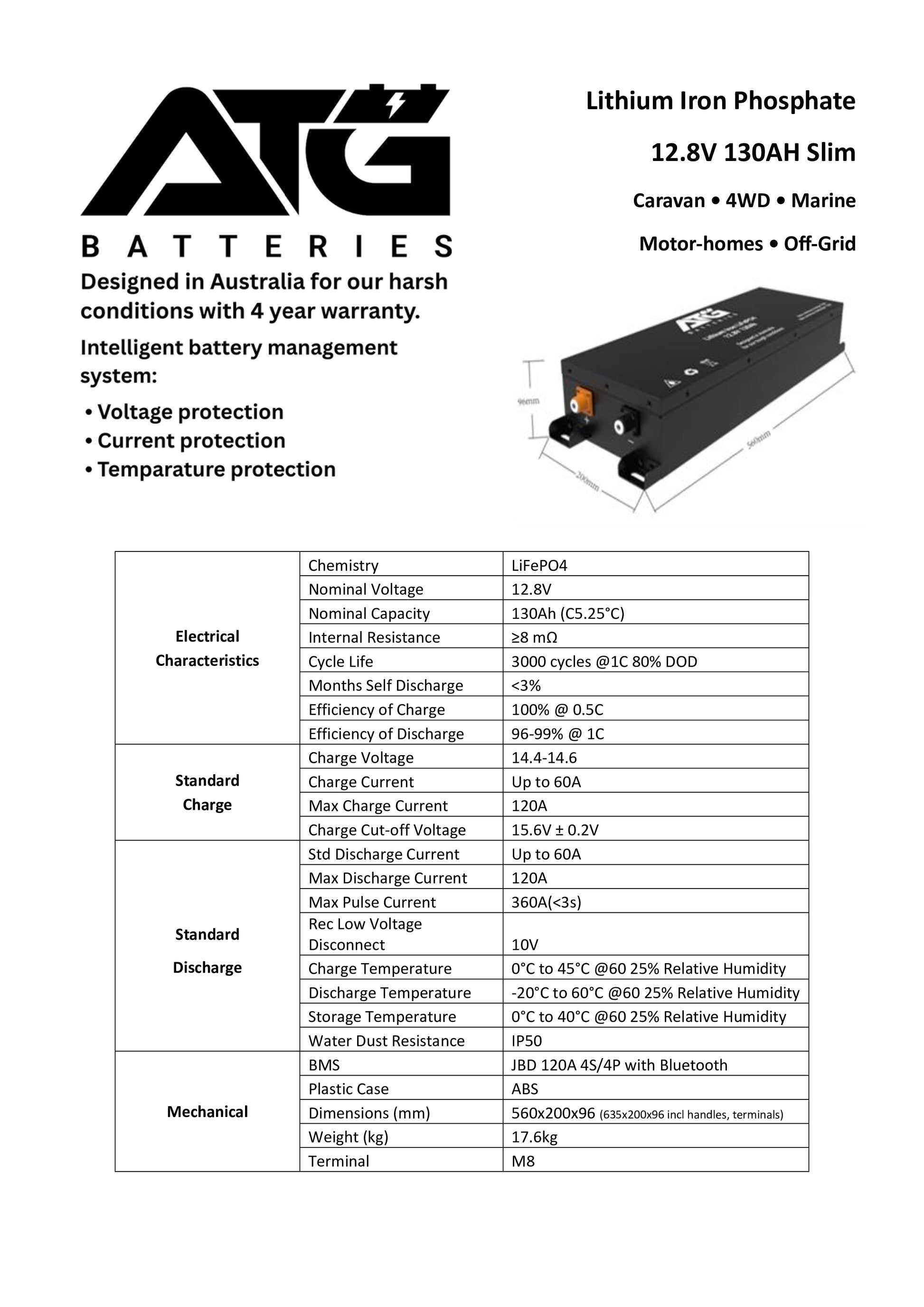

  • Battery type: Lithium Iron Phosphate (LiFePO₄).
  • Cells: A Grade prismatic IEC certified lifePo4 cells
  • BMS: Jiabaida
  • Applications: Caravans, 4WDs, marine, motorhomes and off-grid systems.
  • Warranty: 4 years.
  • Cycle life: 3,000 cycles at 80% depth of discharge, tested at 1C.
  • Bluetooth monitoring: JBD 120A battery management system with voltage, current and temperature protection.
  • Charging voltage: 14.4–14.6V.
  • Charging current: Standard up to 60A; maximum 120A.
  • Discharge current: Standard up to 60A; maximum 120A.
  • Peak discharge: 360A for less than 3 seconds.
  • Recommended low-voltage disconnect: 10V.
  • Operating temperatures: Charging 0–45°C; discharging −20–60°C.

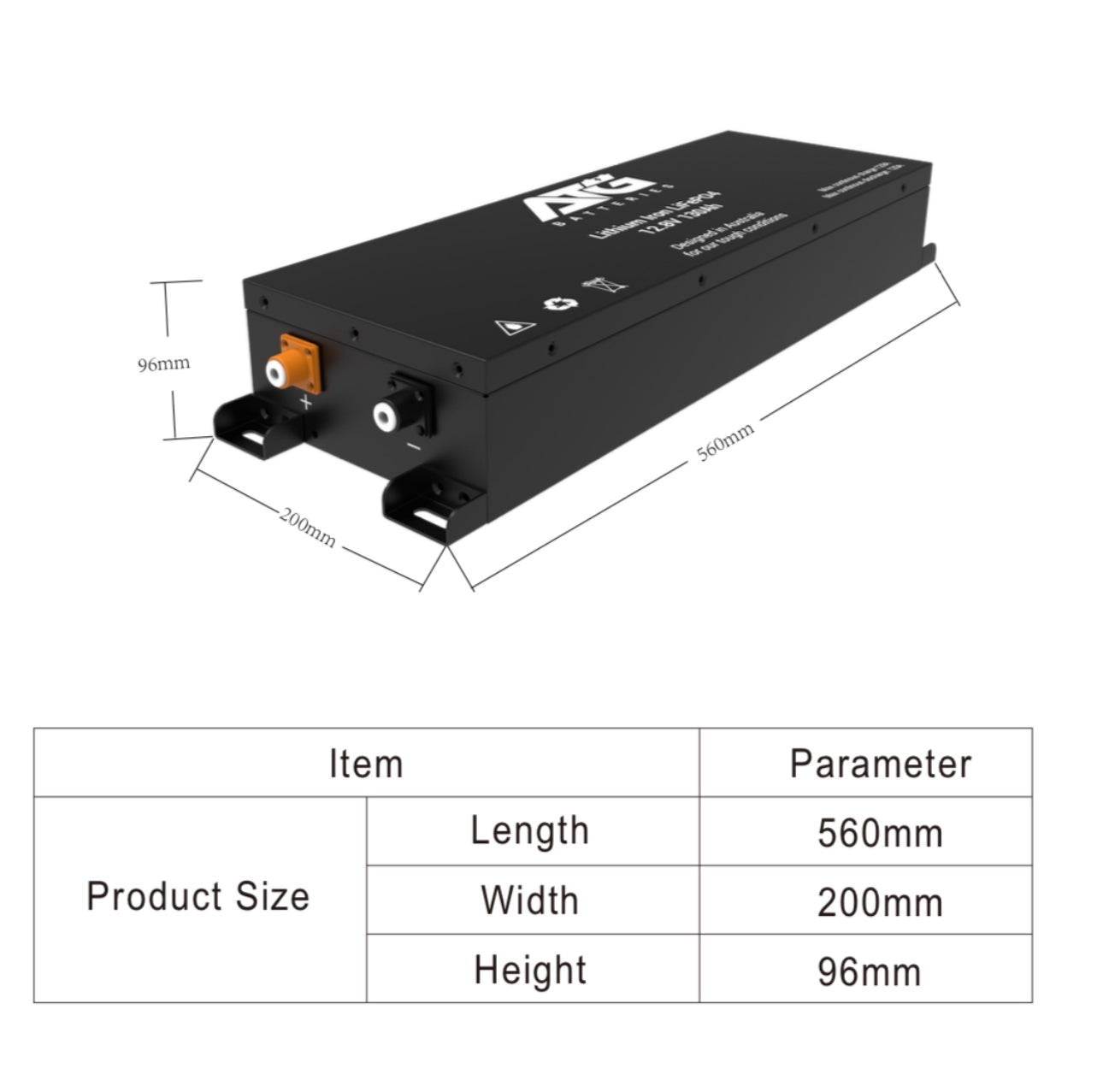

  • Dimensions: 560 × 200 × 96mm; 635 × 200 × 96mm including handles and terminals.
  • Weight: 17.6kg.
  • Terminals: M8.
  • Enclosure: ABS case with IP50 rating.
